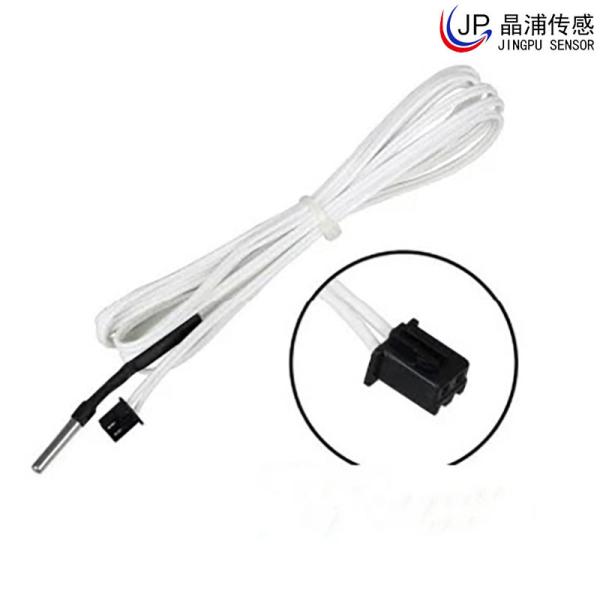

Stainless Steel NTC Probe Temperature Sensor ISO9001

Name: Stainless Steel NTC Probe Temperature Sensor ISO9001
Brand: JINGPU SENSOR
Price: 0.5 USD

Wholesale Stainless Steel NTC Probe Temperature Sensor ISO9001 from china suppliers

Brand Name : JINGPU SENSOR

Model Number : MFT

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : USD 0.5-5 Per Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packaging

Probe : Stainless steel SUS 5*45 probe

Wire : two-core sheathed wire OD 3.0mm

Operating temperature range : -40℃~80℃

Application : AC evaporator of vehicle

Cable : PVC Cable

Customization : Available

Contact Now

Stainless Steel NTC Probe Temperature Sensor ISO9001

Product Description:

Stainless steel SUS 5*45 probe, two-core sheathed wire OD 3.0mm, can be matched with terminal connectors according to customer requirements.

Features:

Comply with RoHS standard

PVC insulated lead wires series Operating temperature range: -40℃~80℃

Stable performance

Accurate temperature measurement

Application:

AC evaporator of vehicle

Structure and Dimensions(mm):

Stainless Steel NTC Probe Temperature Sensor ISO9001

Electrical Specification:

Rec. at 25℃(kΩ)+A2:G25+A2:G25	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	Max.3.0	Max.20	-40℃~80℃	100~2000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
