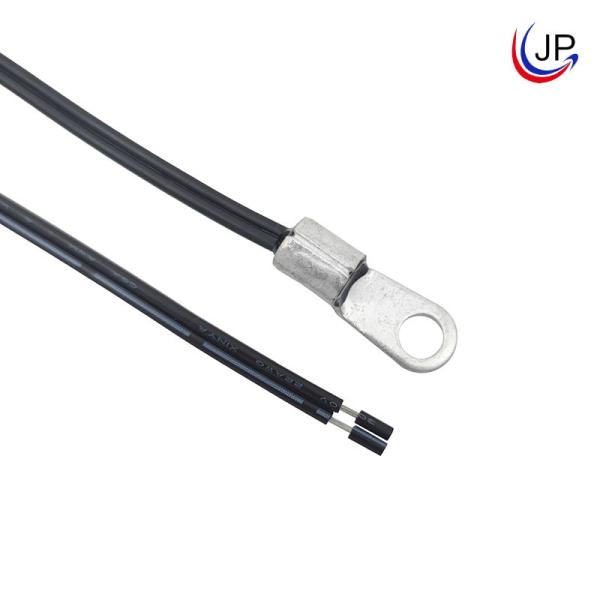

Probe Surface Mount Temperature Sensor NTC 2500K To 4500K

Name: Probe Surface Mount Temperature Sensor NTC 2500K To 4500K
Brand: JINGPU SENSOR
Price: 1 USD

Wholesale Probe Surface Mount Temperature Sensor NTC 2500K To 4500K from china suppliers

Brand Name : JINGPU SENSOR

Model Number : MFP-2A

Certification : ISO9001, RoHS

Place of Origin : Anhui, China

MOQ : 500 Pieces

Price : To be negotiated

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Million per Year

Delivery Time : 2 Weeks

Packaging Details : Carton Packaging

Resistance : 0.3kΩ to 2000kΩ

B value : 2500K to 4500K

Operating temperature range : -20℃~105℃

Ring lug : Cu / Sn RNB8-5S

Chip : NTC Chip

Wire : UL2651 22AWG

Contact Now

Probe Surface Mount Temperature Sensor NTC 2500K To 4500K

Product Description:

Ring lug M5, The optional resistance value range 0.3kΩ to 2000kΩ, and the beta value range 2500K to 4500K.

Features:

Comply with RoHS standard

Interchangeability

surface mount temperature measurement

PVC insulated lead wires series Operating temperature range: -20℃~105℃

Sensing element electrically isolated from tag

Application:

Battery Covers

Power Distribution

Thermal Management

Heat Sinks

Control cabinet

Structure and Dimensions:

Probe Surface Mount Temperature Sensor NTC 2500K To 4500K

Electrical Specification:

Rec. at 25℃(kΩ)	Beta value	(In air) Pmax(mW)	δ(mW/℃)	Thermal time constant τ(sec.)	Operating Temperature Range TL-TH(℃)	Total length L(mm)
1	B25/85=3435	Approx.60	/	/	-20℃~105℃(PVC wire)& -40℃~125℃(teflon or XLPE wire)	100~5000
1.5	B25/50=3850
1.5	B25/50=3935
2	B25/85=3550
2	B25/85=3935
2.08	B25/85=3580
2.2	B25/50=3935
3	B25/50=3950
5	B25/50=3470
5	B25/50=3950
8	B25/100=3988
10	B25/85=3435
10	B25/50=3470
10	B25/50=3935
10	B25/50=3950
20	B25/50=3950
47	B25/50=3950
50	B25/50=3950
50	B25/50=4200
100	B25/50=4200
200	B25/50=4200
500	B25/50=4450
1000	B25/85=4600
